Indosons Electrical Industries

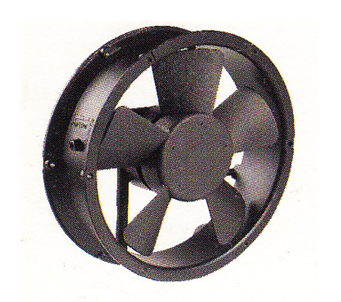

∅220x60mm

Modal No.	Voltage V	Frequency Hz	Current A	Input Power W	Speed RPM	Airflow CFM	Static Pressure mm H₂0	Noise dB(A)	Box Pkg. Pcs.
22060 R Bl M W	115	50	0.77	62	2300	360	22	56	10
Fan with AC to DC Converter
22060 B2 M W X	230	50/60	0.22	30	3000	450	28	60	10

Modal No.	Bearing Sleeve Ball	Voltage V	Frequency Hz	Current A	Input Power W	Speed RPM	Airflow CFM	Static Pressure mm H₂0	Noise dB(A)	Box Pkg. Pcs.
22538 A2 M W		230	50/60	0.12/0.11	22/20	2550/2850	80/105	6.4/7.6	43/48	40

Modal No.	Voltage V	Frequency Hz	Current A	Input Power W	Speed RPM	Airflow CFM	Static Pressure mm H₂0	Noise dB(A)	Box Pkg. Pcs.
27255 Al M W	115	50/60	0.38/0.37	30/29	2500/2800	175/180	12.2/9.7	52/55	20
27255 B1 M W	115	50/60	0.38/0.37	30/29	2600/2900	180/200	12.2/9.7	52/55	20
27255 A2 M W	230	50/60	0.23/0.20	37/35	2500/2800	175/180	12.2/9.7	52/55	20
172-55T B2 M W	230	50/60	0.23/0.20	37/35	2600/2900	180/200	12.2/9.7	52/55	20
